- Pull tape from dispenser pack and cut off required length. Feed tape up through slot in the locking capsule and then back down through the same slot to form a large loop.
IMPORTANT: The short end must be to the front of the capsules as shown or the locking action will fail. - Swing the locking bar through the loop (A) of the tape as shown and press fully down. Pull long end of tape (B) down to tighten the loop over the locking bar.

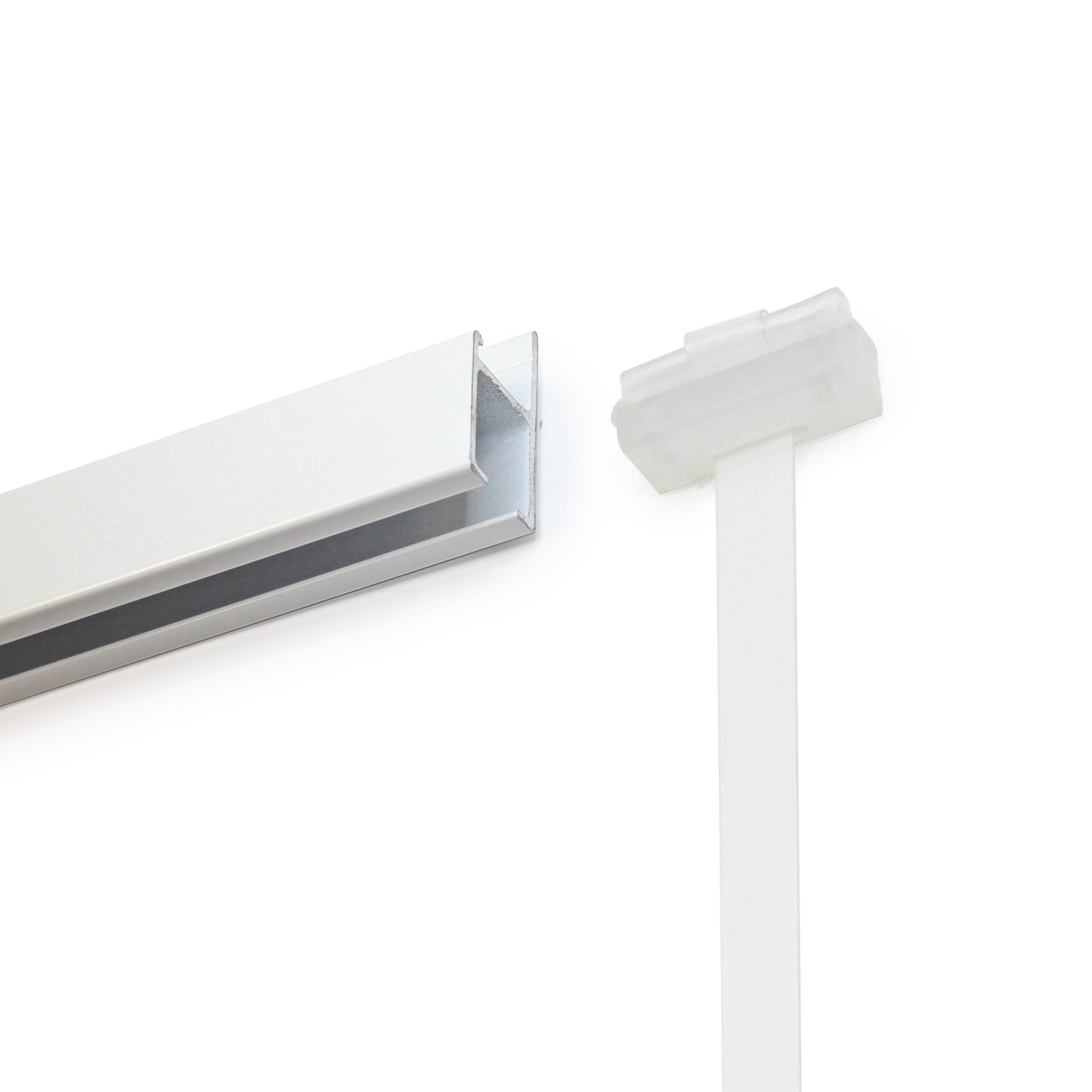

- Fit the capsule into the track as shown with the locking bar to the front.
- Fit hook to the tape as shown.

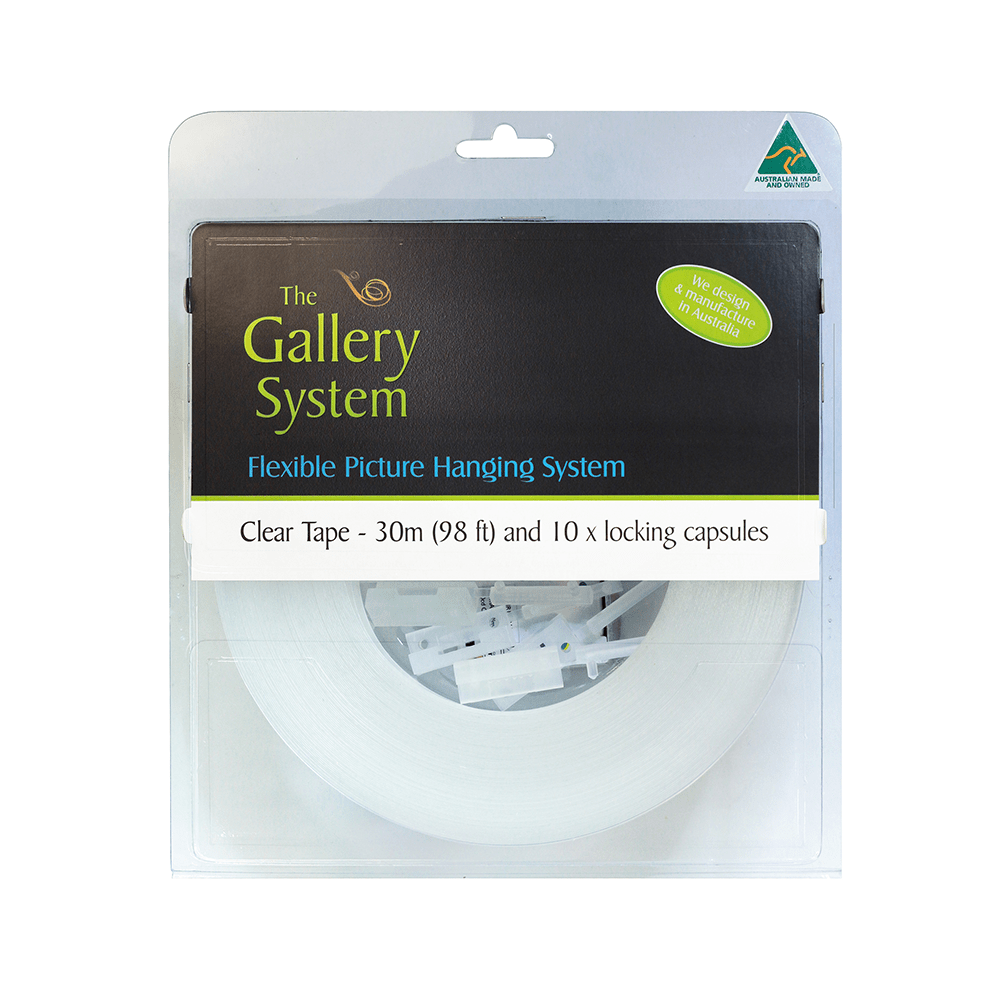

Clear Tape Hangers (30m tape)
$ 57.20
The Standard CT Hanger pack contains 30m of strong clear tape and 10 locking capsules to hold the tape up into the track. The flat tape offers advantages over other nylon hangers.
- Wide area of grip means the hooks won’t slip.
- The hook always points outward ready to accept the picture.
- Easy to cut the Clear Tape to size as needed. If you have any tape left over you can purchase extra locking capsules separately. These hangers must be inserted from the end of the track (ensure there is 4cm clearance for this purpose).
- Weight bearing capacity is 15kg per hanger. Note tape is 1cm wide
These are the different components to the Standard Gallery Hanging system:

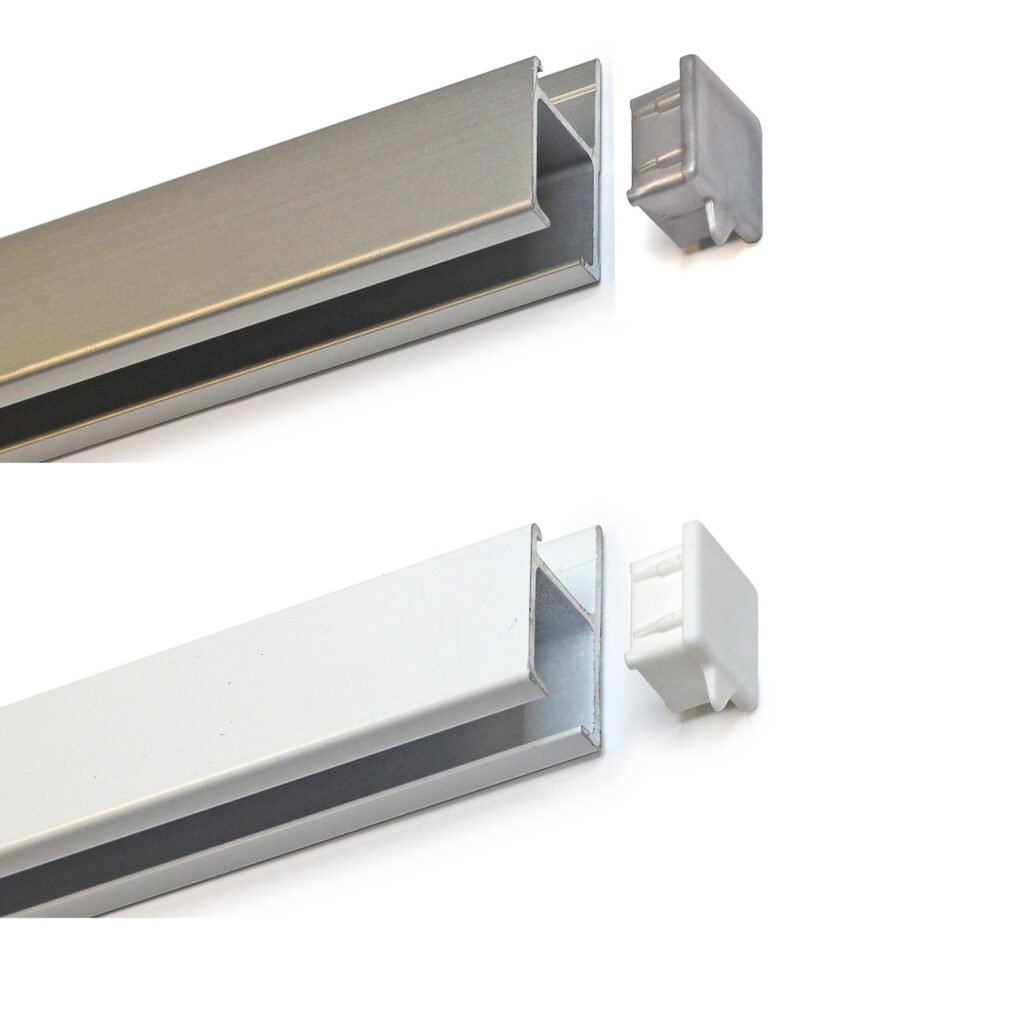

1. Select your track
Silver (Anodised) or White Powder coated
2. Select your hangers
Stainless Steel, Clear line or Clear tape
3. Select your hooks
To support your artwork
4. Add accessories
Optional accessories
5. Optional add-on Lighting
Bring your art to life!
Not sure what to use? Try our systems builder
It will walk you through each step to get your system up and running.
Gallery System Clear Tape Hanger instructions:
